Orion XTR750.4 4-Channel 750 Watts RMS Power Class-A/B Car Audio Amplifier

Key Features:

• Class AB Amplification
• 750 Watts RMS
• All MOSFET Power Supply & Output Stage
• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 12dB Octave Low-Pass Filter

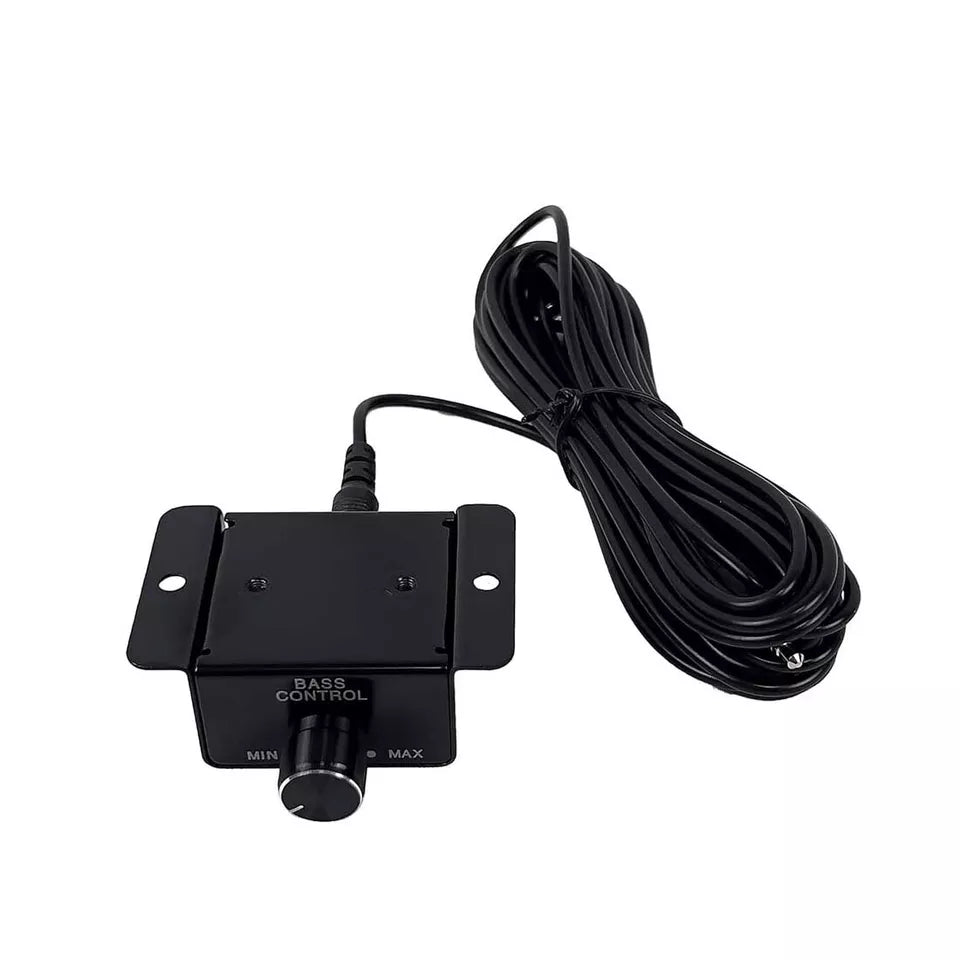

• Remote Gain Controller Included
• Electronic Crossover Network
• Bass Boost Circuit
• Power and Protection LED Indicators
• Soft Turn-on/Turn-off Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

Specifications:

• RMS WATTS @ 4 Ohms @ 0.5% THD+N: 4 x 135W
• RMS WATTS @ 2 Ohms @ 0.5% THD+N: 4 x 188W
• RMS WATTS @ 4 Ohms @ 0.5% THD+N: 2 x 375W

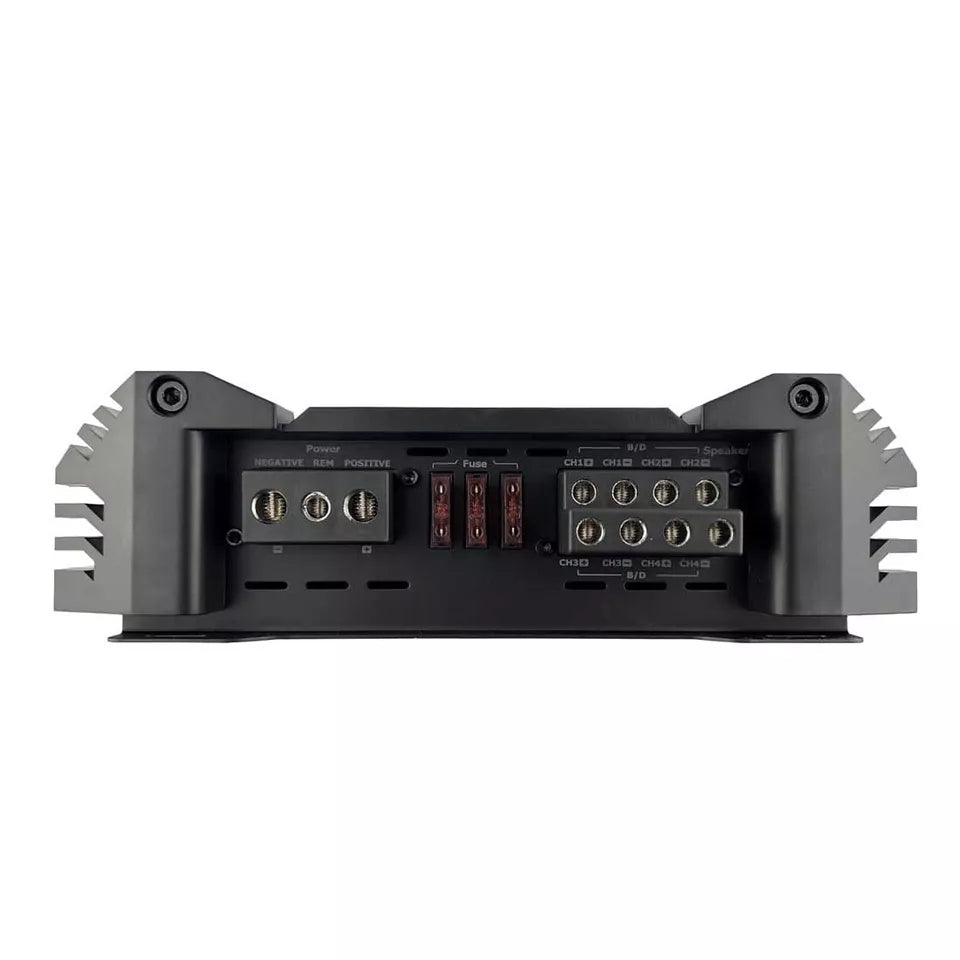

• Positive Terminals: 1 x 4 AWG.
• Negative Terminals: 1 x 4 AWG.
• Remote Turn-ON Signal: 10 AWG.
• Speaker Output Terminals: 10 AWG.
• Frequency Response: 20Hz - 35kHz
• Linear Bandwidth 20Hz to 65kHz +/- 3 dB

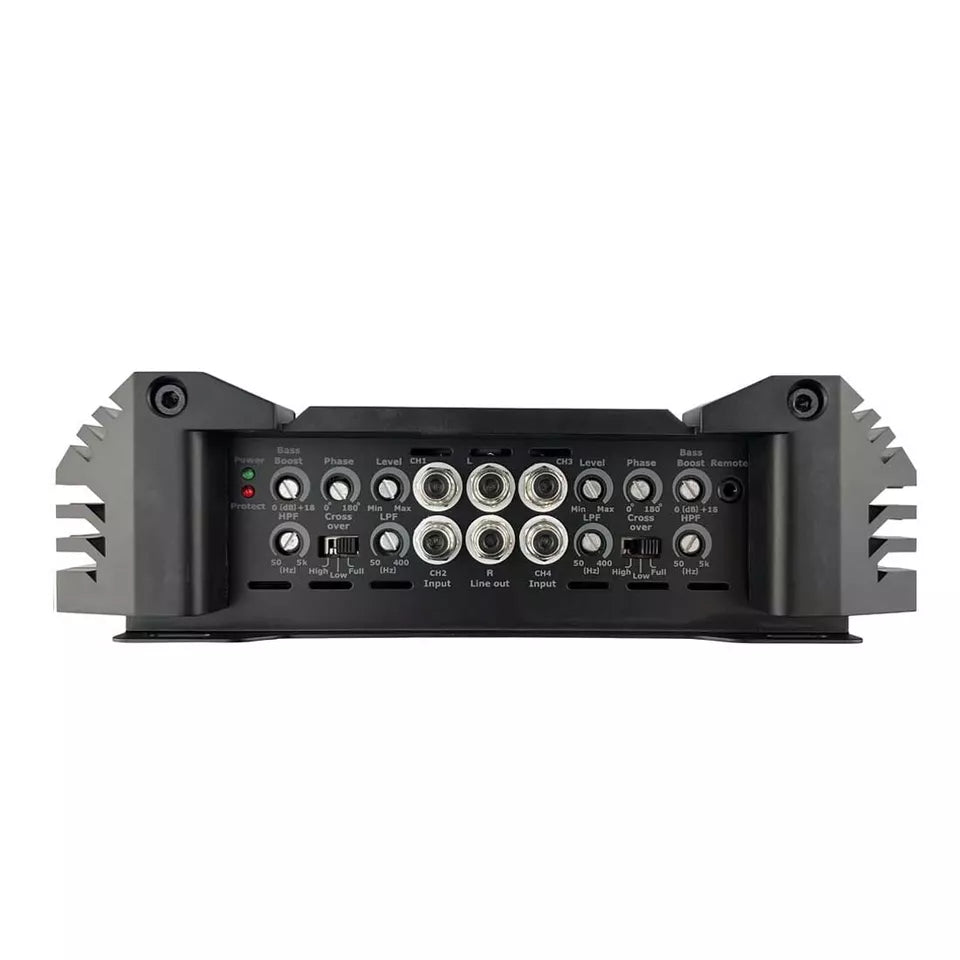

• High Pass Crossover Continuously variable (50-5kHz)
• Low Pass Crossover Continuously variable (50-400Hz)
• Supply Voltage: 9 - 16V
• Amplifier Efficiency: >60%
• Damping Factor: 100dB
• Signal to Noise Ratio: >95dB
• T.H.D. & Noise: 0.5%
• Phase Shift: 0 - 180
• Bass Boost: 0-18dB Variable
• Variable Input Level Control: 0.2V - 6.0V
• Fuses: 120A recommended (3 x 40A ATC Fuses)
• Dimensions (L x W x H): 11.5" x 9.25" x 2.75" (292x235x70mm)
