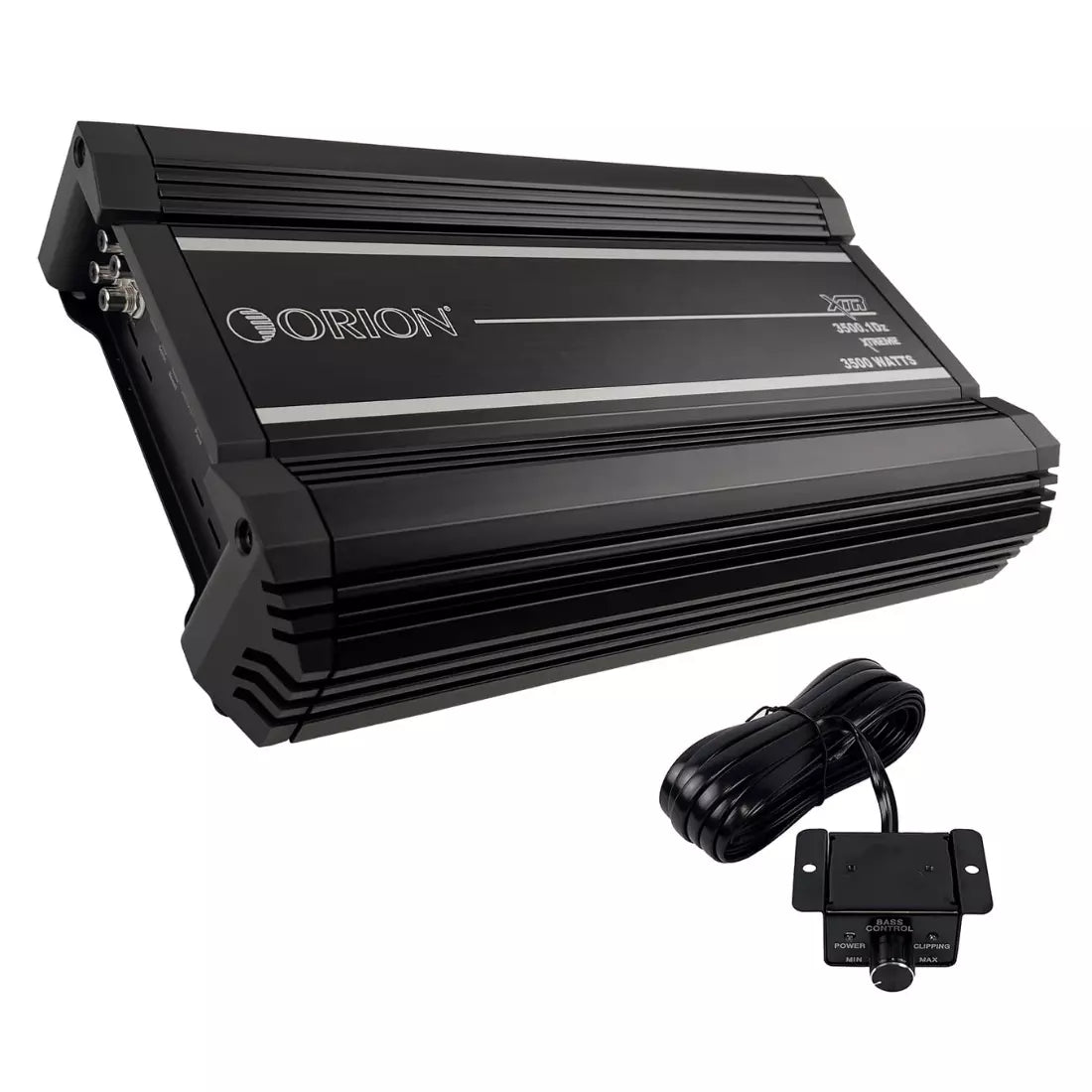

Orion XTR3500.1DZ 1-CH Monoblock 3500 Watts RMS Class-D Car Audio Amplifier

Key Features:

• Class D Amplification
• 3500 Watts RMS
• Precision Audio Control
• Customized Bass Enhancement
• Advanced Protection Measures
• Compact and Stylish Design
• Engineered Excellence
• All MOSFET Power Supply & Output Stage

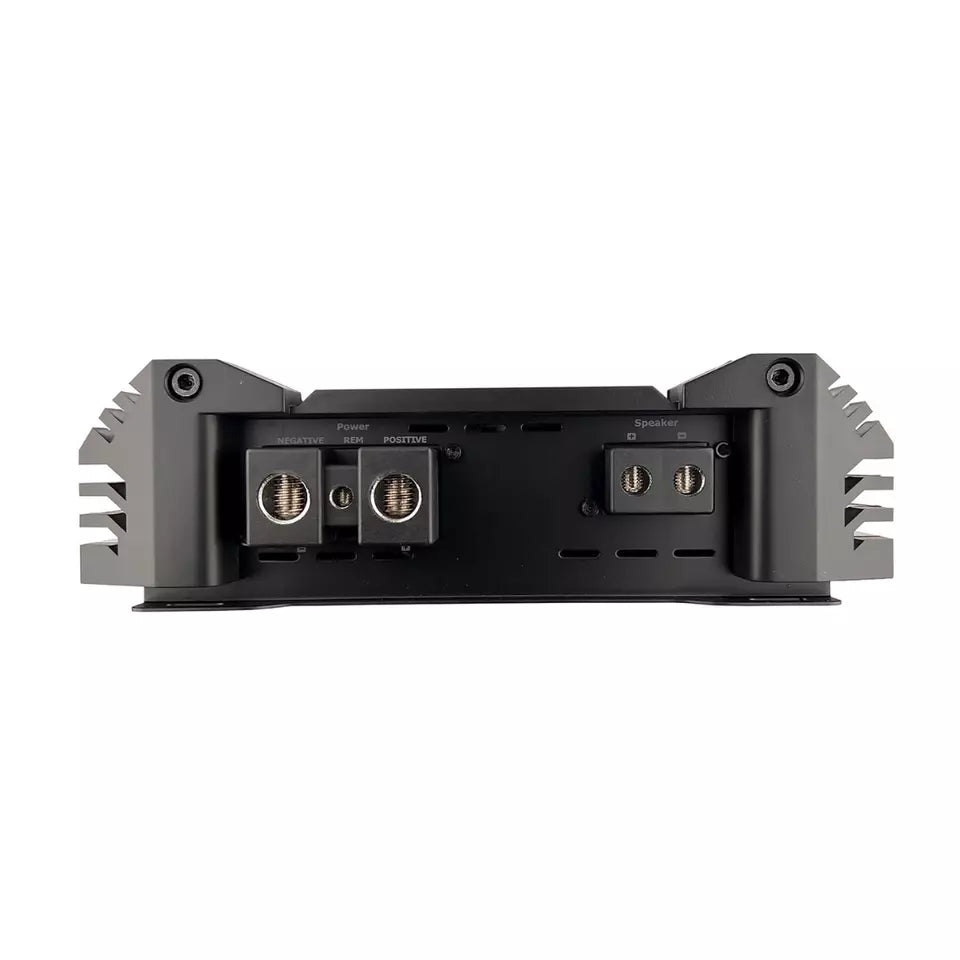

• Heavy Gauge / High Current Custom Power and Speaker Terminals
• 12dB Octave Low-Pass Filter

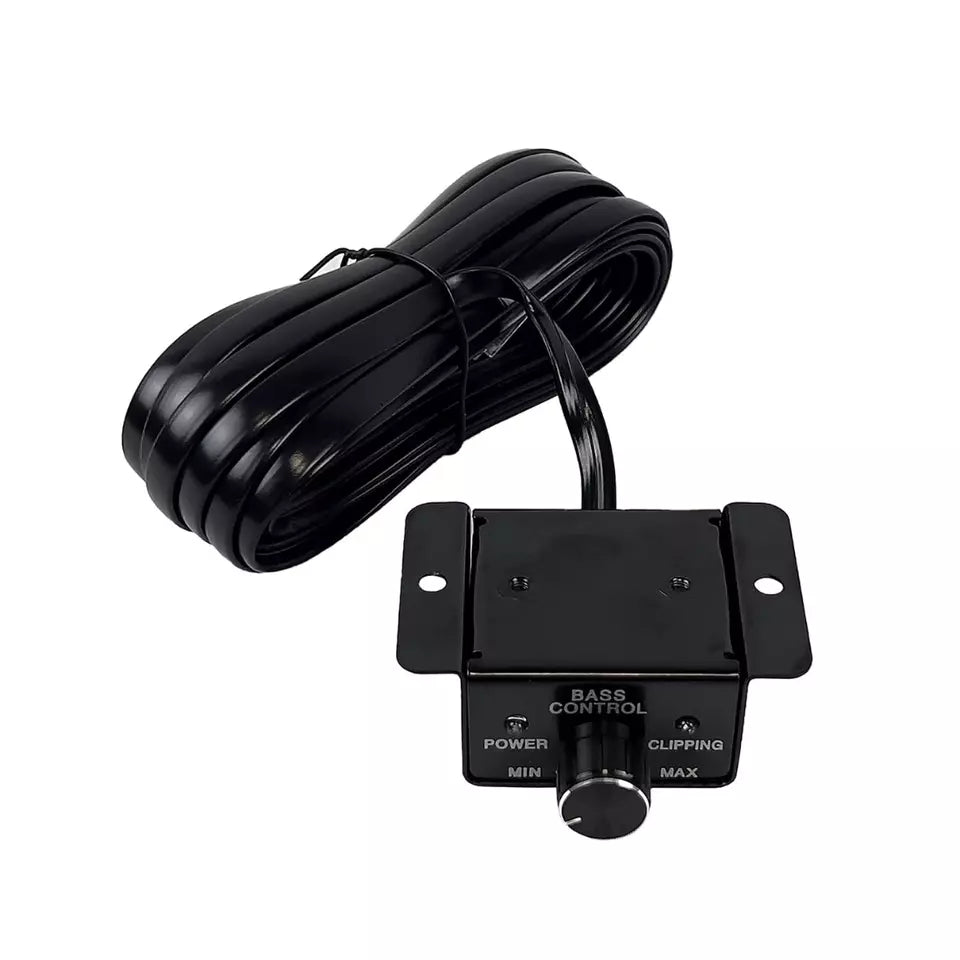

• Remote Gain Controller Included
• Electronic Crossover Network
• Bass Boost Circuit
• Power and Protection LED Indicators
• Soft Turn-on/Turn-off Turn-On Delay
• Fault and Protection Monitoring
• 4-Way Protection: Thermal, DC offset, Short Protection, under & over voltage

Specifications:

• Frequency Response: 20Hz - 250Hz
• Low Pass Crossover: 30Hz - 300Hz
• Supply Voltage: 9 - 16V
• Amplifier Efficiency: >88%
• Damping Factor: 200dB
• Signal to Noise Ratio: >90dB
• T.H.D. & Noise: 0.5%
• Phase Shift: 0 - 180
• Bass Boost: 0-18dB Variable
• Subsonic Filter: Off / 25Hz
• Variable Input Level Control: 0.2V - 6.0V
• Fuses: 300A recommended (not included)
• Dimensions (L x W x H): 15.35" x 9.25" x 2.75" (390x235x70mm)
