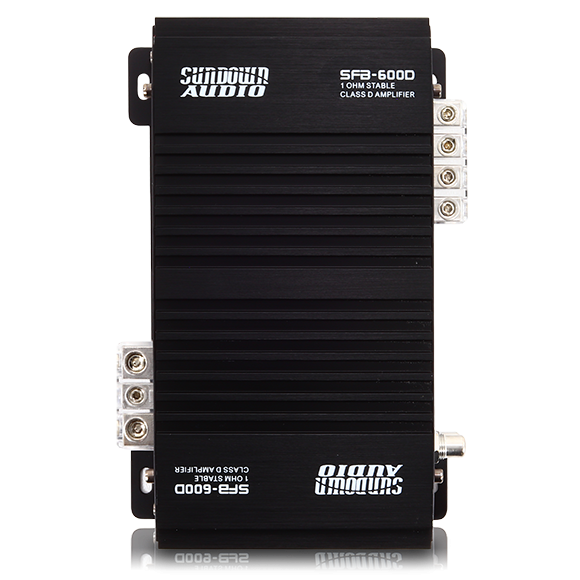

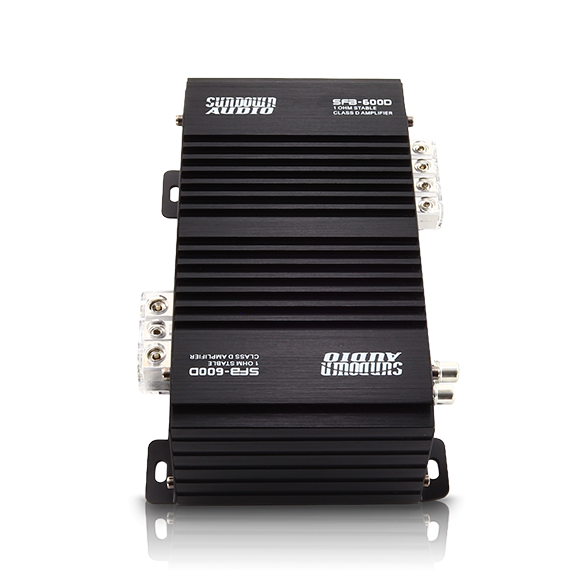

Sundown audio SFB-600D (SFB Series) Amplifier

Features

• Digital Class-D Mono Block Amplifier
• Dual MOS-FET PWM Power Supply
• 1 Ohm Stable Load
• 12 dB/Octave – Variable Low Pass Filter
• 12 dB/Octave – Variable High Pass Filter
• 9 dB/Octave – Variable Bass Boost
• 4 Way Protection Ciruit (Thermal, Voltage, Speaker Short, DC Offset)
• Wired Remote Control with Clipping Indicator

Specifications

• 1 ohm Mono RMS 600W
• 2 ohm Mono RMS 350W
• 4 ohm Mono RMS 250W
• Recommended Fuse Rating 60A
• Low Pass Filter (Variable) 80Hz-20kHz
• High Pass Filter (Variable) 15Hz-1kHz
• Bass Boost @ 50Hz 0-12dB
• Input Sensitivity 5V Max
• S/N Ratio 86dB
• Working Voltage 10.5v-15.5v
• Dimensions 7.25" x 5.00" x 2.50"
