DS18

10.5" Floating Rotating Swivel Modular Touchscreen Mechless Single-DIN Headunit with Bluetooth, Mirror Link, USB, Gps and Android 10 (4x64GB)

$599.95 In Stock Sold out
Snap Logo Lease for as low as $/week Learn More
CODE: DDX10.5ADX

1-4 DAYS DELIVERY

100% ORIGINAL AND QUALITY

24 MONTHS GUARANTEE

  • Description
  • Technical Details
  • Shipping and Refund

DS18 DDX10.5ADX 10.5” Single-Din Floating Display Mech-Less Digital Media Receiver With Android 10 Operating System/ Mirror Link For iOS & Android / DSP / BT / AUX / USB / SD / AM / FM & All Your Favorite Apps

DS18’s DDX10.5ADX Mech-Less Receiver takes everything our customers loved about the DDX6.9ML Double Din Multimedia Receiver but upgraded the detachable screen from 6.9” to an incredible full rotatable 10.5” IPS screen and made it Single-DIN for Perfect Fit Modular Mounting!

The Flawless Touch Screen Control supported by all DS18’s Receivers returns for seamless maneuvering through the numerous features available in this upgraded model.

This receiver will include everything you need to bring your multimedia dreams including Mirror Link, Wi-Fi, Bluetooth, AUX, x3 USB, SD, phone controls, and all your AM / FM stations along with 4K streaming.

Connecting your head unit to your mobile hotspot makes accessing the downloadable apps available to this receiver much easier and the built in SD Reader allows you to access 64GB of memory with DVR recording.

These receivers are mech-Less; this means that they don’t support the play of compact discs and only play music back from digital media players. That’s why we’ve included so many options for playing music back from your digital devices.

This receiver has a built in Fully Adjustable DSP (Digital Signal Processor) and 8 Channel 6 Volt output allows you to tune signals from various inputs various inputs in conjunction with your Equalizer and get your speakers to play the way they were designed to: without distortion and extremely LOUD!

The built in Digital Video Recorder built for the cameras installed in this receiver guarantees your safety and authority on the road.

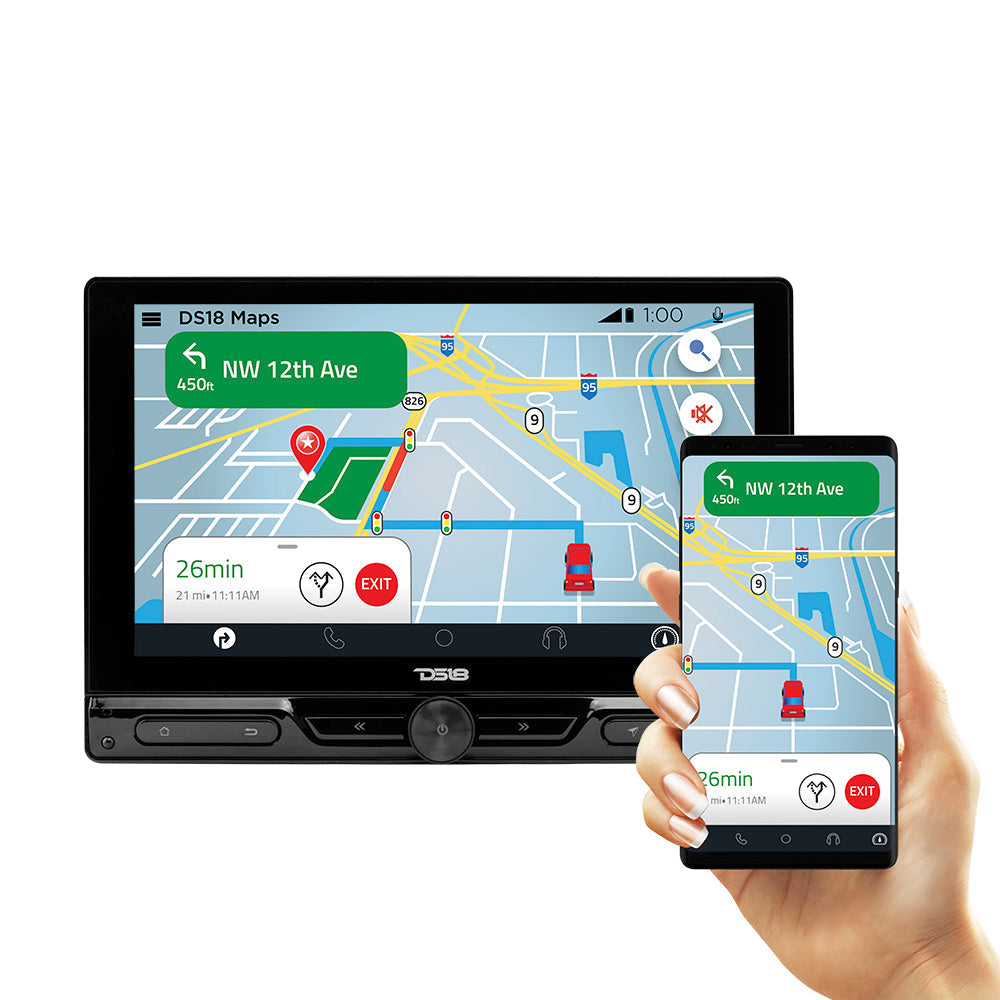

Set up Mirror link to display all media from your phone on the device, but a mobile hotspot is required for GPS functions if you are not using mirror link.

This receiver does it all and has the power to support it: with 4CH x 18W RMS and 4CH x 54W MAX at 4 ohms this receiver has just enough power to charge most entry level speakers.

(PLEASE REMEMBER DO NOT WATCH MOVIES IN MOTION, WAIT UNTILL THE CAR IS PARKED)

Highlights

  • 10.5” (Wide 16:9) Full HD (1280x720 pixels) Single-Din touchscreen to maximize your viewing and allow perfect fit modular mounting.
  • Android 10 System with 4+64 GB of memory
  • Full 14 Band EQ and Subwoofer LPF
  • Built in , Aux, SD Reader (64GB), 1.5a USB charging, AUX Input, AM/FM Tuner, and USB connections 3 (1 front and 2 rear)
  • HDMI Outputs for full size monitor use
  • Wireless remote control for easy operation.
  • RCA inputs so you can view external sources video easily via source.
  • Multi Colored Backlit Keys for easy use in dim settings
  • MIC in options for easy phone operation and built in controls.
  • Camera (front/rear) Inputs included so you can plug and play most types of back up cameras.
  • Mech-Less
  • Apple and Android compatible with mirror link.
  • BT Mic included.
  • Built in Navigation and antenna.
  • 6v 8 channel Pre output.
  • Steering Wheel controls compatible with most vehicles.

SPECIFICATIONS
GENERAL
Rated power source 14.4V DC (10.8V to 15V operation)
Maximum Current Consumption 10 Amp
Dimensions (W x H x D) Chassis: 178mm x 50mm x 115mm
Bezel frame: 170mm x 46mm x 5mm    Screen Frame: 266mm x 180mm
Weight: 4.5 Lb
DISPLAY
Screen Size / Aspect Ratio 10,5 inch / Wide 16:9
Pixels 1280x720
Display Type IPS / Full HD / Capacitive Touch Screen
Temperature Operation -20°C to +60°C (14°F to 140°F)
AUDIO
Maximum Power Output 50W X 4 Ch / 4 ohm
Continuous Power Output 18W x 4 Ch / 4 ohm @ 14.4V
Pre-output Level 6 Volts @ 14.4V
Equalizer 14 bands totally adjustable from 20Hz to 20KHz on each band                                   Factor Q: Adjustable from 0.4 to 12     Gain:+/- 15dB                                           Presets: Standard / Popular / Rock / Classical / Jazz Custom: 3 User Memories
Crossover: High Pass: Adjustable 20Hz to 20KHz Low Pass: Adjustable 20Hz to 20KHz Slope: Adjustable 6, 12, 24, 36, 48 dB/Oct
Audio Control Volume / Balance / Fader / Gain / Delay
TUNER
Frequency Range FM: 87.5 ~ 107.9 KHz AM:530 ~ 1710 KHz
Presets Memory 30 Stations (18 FM/12 AM)
Region Selectable (Europe, USA, China, Japan, Eastern Europe, Latin América, Taiwan, Australia, South América, Iran, Middle East)
Sensitivity Adjustment LOC (On/Off) / ST (On/Off)
USB / SD PLAYER
Type / Class V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS
Format Files Supported RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX
Resolution Supported 1080P Video
Memory Size Reader up to 32 Gb
Max Current Supply 1.5 Amp (USB)
Number of USB Ports 3 (1 x Front, 2 x Rear)
CONNECTIVITY
Bluetooth Version / Services V5.0 / Audio Streaming / Hands Free calls
Camera Input RCA Analog Video up to HD 720p (Front/Rear)
Video Output Dual RCA (1 Volt/75 ohm)
AV Aux Input Rear RCA Audio and Video / Front 3.5mm Jack Stereo Audio
Microphone 3.5mm Jack external MIC Input
Remote Control Wired (3.5mm jack) Input
Internet: Wi-Fi wireless connection
HDMI: Yes (output) Selectable
