AudioControl D-4.800 D Series 4-channel car amplifier with digital signal processing — 125 watts x 4

Product details

Amplifier and DSP in one package

Two keys to unlocking great sound in a car stereo system are serious power and extensive control — and this amp's got them both. For power, AudioControl's D-4.800 4-channel amplifier generates 125 watts RMS per channel, so it'll drive even the most demanding aftermarket speakers with plenty of headroom to spare. You could also bridge the D-4.800 to drive a couple subwoofers with 400 watts RMS each.

Computer-controlled digital signal processing

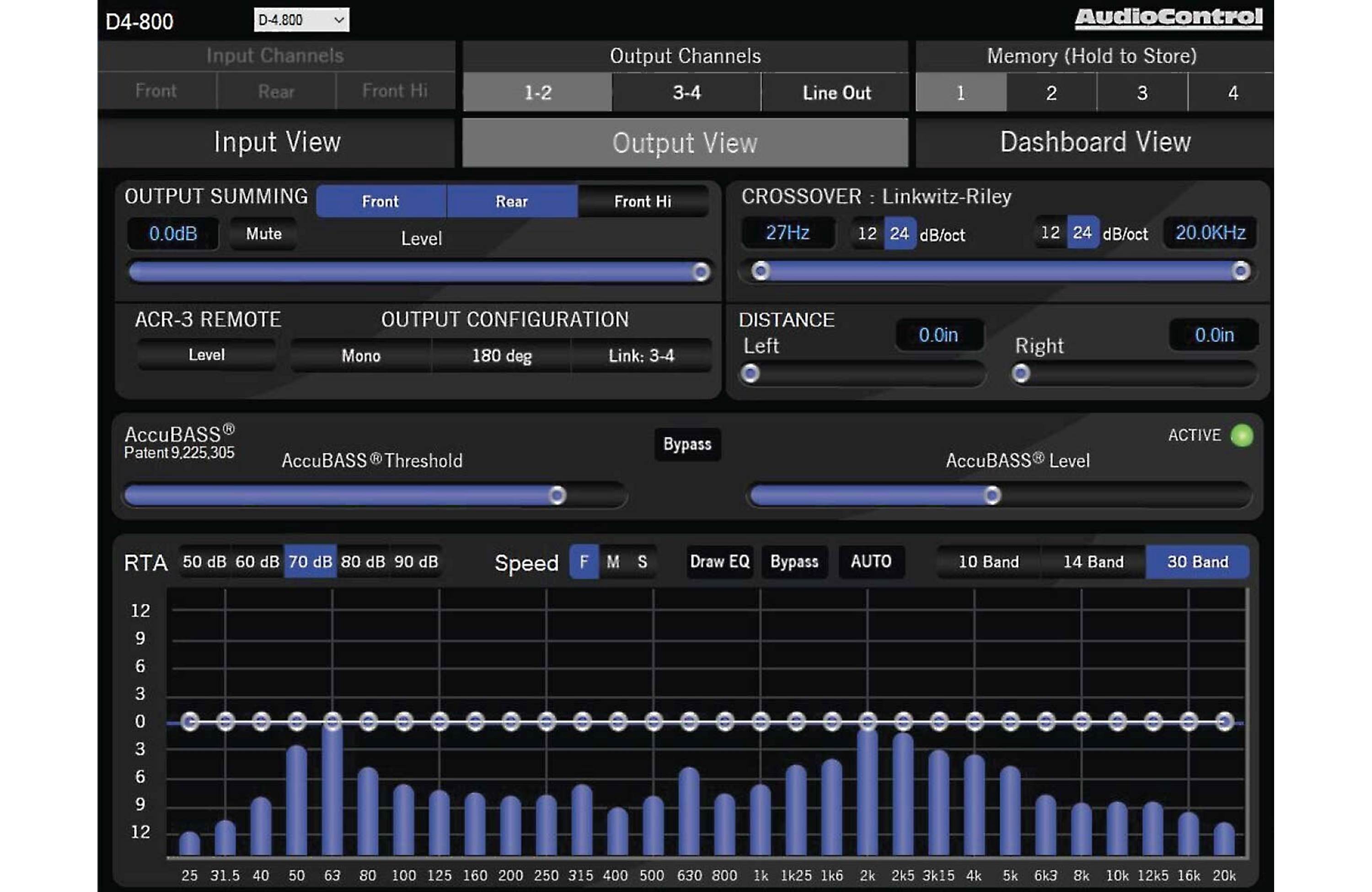

Smart-User DSP tuning software on a laptop (DM-810 version shown)

You won't find any knobs on the D-4.800 — you make adjustments and save settings via your laptop (PC or Mac). AudioControl's Smart-User DSP software package includes 12 or 24 dB/octave Linkwitz-Riley crossovers, 30-band equalizers, parametric filters, time delay/alignment for inputs and outputs, phase correction, AccuBass™ bass correction, and real-time analyzers (RTA) for the inputs and outputs so you can visually confirm the improvements in the sound.

It's made to work with a factory radio

Six active speaker-level inputs allow you to connect this amp to almost any factory system, even ones that have separate pre-filtered, time-aligned, and amplified signals going to separate factory speakers and tweeters. The D-4.800 sums them into one smooth, unified signal for you to balance, align, and tune for your better-sounding aftermarket speakers. AudioControl's Great Turn On (GTO™) signal-sensing circuitry turns the amp on automatically whenever it senses an input, so you won't have to run a separate turn-on lead back to the receiver.

Convenient features

Onboard LEDs indicate optimized signal flow for inputs and outputs, plus give you a warning when a source is too loud and causing distortion. An optional ACR-3 wired remote controller lets you select sources, control levels, and recall presets from your front seat. An optional Bluetooth® adapter lets you stream music and control the digital processing wirelessly from your compatible portable device.

Product highlights:

• Featured in our article: Best 4-channel car amplifiers for 2024
• 4-channel car amplifier with digital signal processing
• 125 watts RMS x 4 at 4 ohms (200 watts RMS x 4 at 2 ohms)
• 400 watts RMS x 2 bridged at 4 ohms (4-ohm stable in bridged mode)
• all controls and adjustments made with AudioControl Smart-User DSP app on your laptop (PC or Mac) via USB connection
  • USB cable included
• optional AC-BT25 Bluetooth adapter available
• variable high- and low-pass filters (20-20,000 Hz at 12 or 24 dB/octave)
• AccuBASS circuitry for improved bass response
• 30-band graphic EQ, parametric filters, phase correction
• time delay/alignment for inputs and outputs
• RTA (real-time analyzers) for inputs and outputs

Other Features:

• optional ACR-3 remote controls level and recalls presets
• MILC™ (Maximum Input Level Control) LED optimization and clip indicators
• 6 speaker-level inputs (summable)
• GTO signal-sensing turn-on
• preamp inputs and outputs
• fuse rating: 40A x 2
• 4-gauge power and ground leads recommended — wiring and hardware not included with amplifier
• dimensions: 8-7/8"W x 2"H x 7-3/4"D
