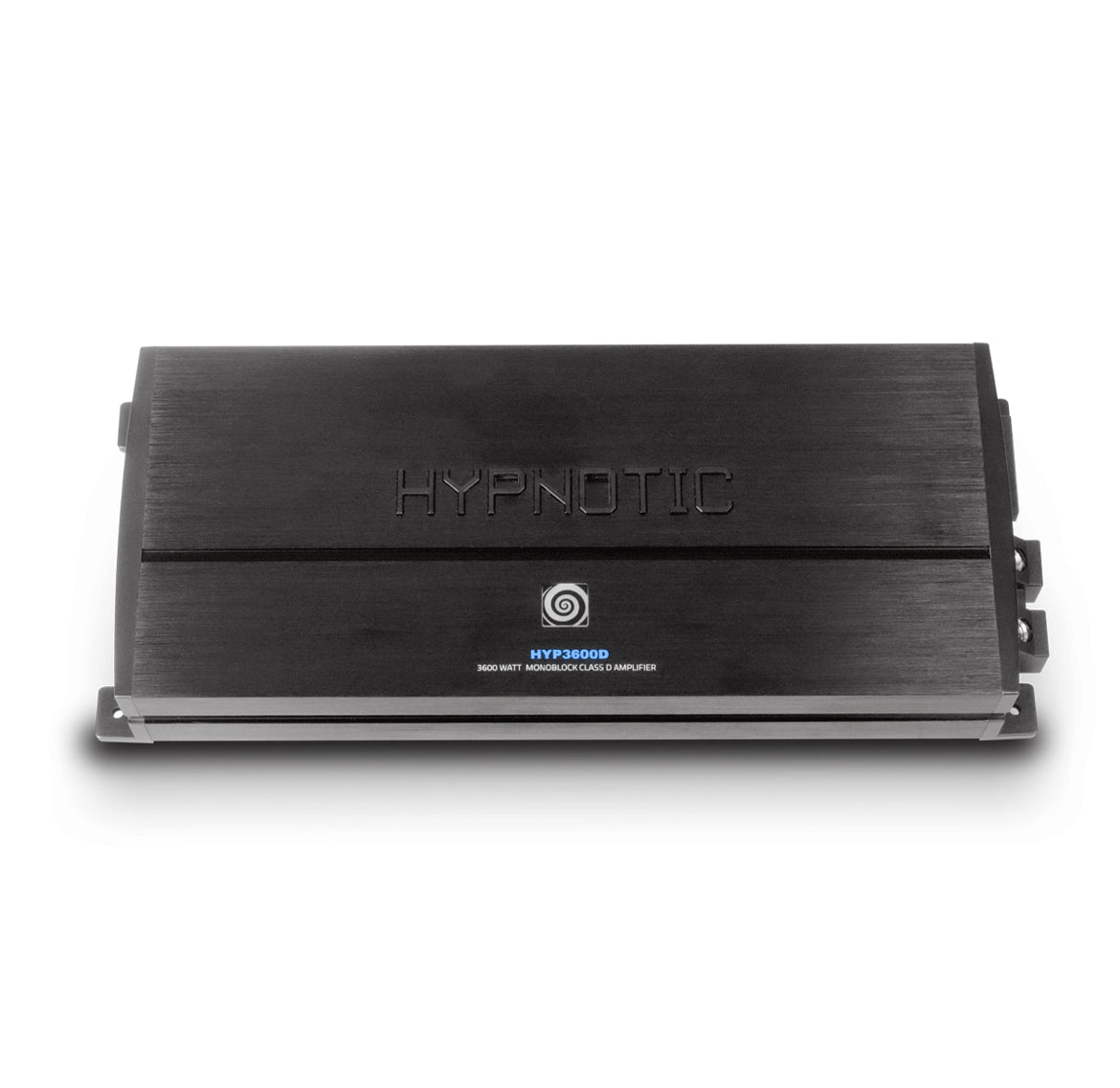

Hypnotic HYP3600D

3600 Watt Mono Block Bass Amplifier - with 0 Guage Terminals

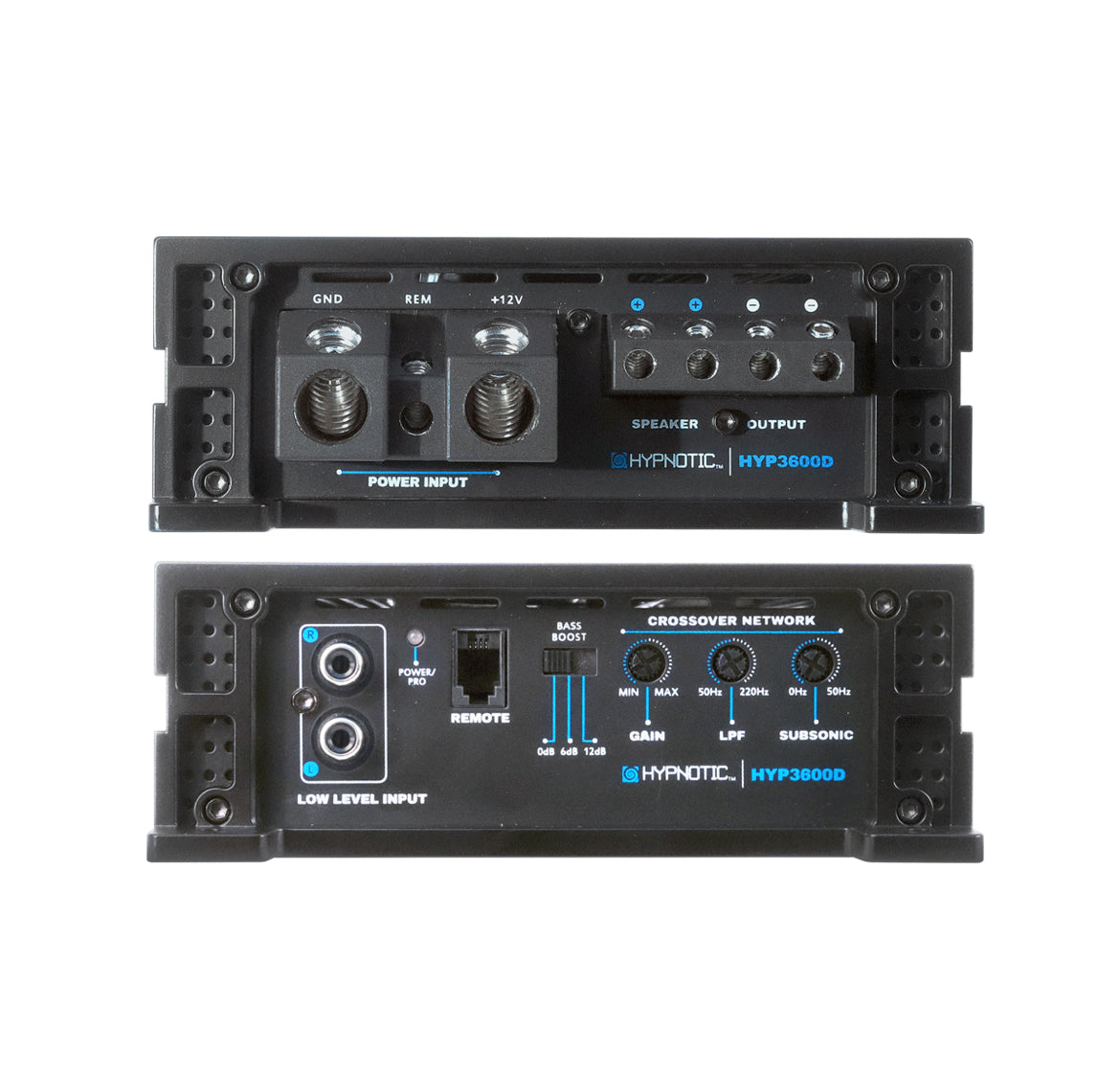

The HYP3600D is equipped with a variable 12db slope Lowpass crossover network and a variable subsonic filter. The mono amps also feature a variable Bass Boost EQ is set at 45Hz.

• Class D Mono Block Amplifier
• 1 Ohm Stable Capability PWM
• Mosfet Power Supply
• RCA Line Level Stereo Inputs
• Double Sided PCB
• 12dB / Variable Low Pass Crossover
• Variable Subsonic Filter
• Selectable Bass Boost @ 45 Hz
• Thermal Protection Circuitry
• Wired Remote Bass Control Included

• Length (A)	13.30″ / (338mm)
  Width (B)	6.10″ / (155mm)
  Height (C)	2.20″ / (55.99mm)





  GENERAL SPECIFICATIONS
  Rated Power @ 14.4 Volts
  Dynamic Power Handling	1 x 3600 Watts @ 1Ω
  Nominal Power Handling	1 x 1800 Watts @ 2Ω

  PARAMETERS
  Frequency Response	10Hz – 250Hz
  S/N Ratio	< 90 dB
  Low Pass Crossover	50Hz – 220Hz
  Subsonic Filter	0 ~ 50Hz
  Bass Boost @ 45Hz	0-6dB – 12dB
  Input Sensitivity	200mV ~ 6V
