PRV AUDIO WG14-50CR 2″ Exit Waveguide – Die Cast Aluminum Wave Guide – 45° x 45° Bolt-on (Single)
100% ORIGINAL AND QUALITY
24 MONTHS GUARANTEE
- Description
- Shipping and Refund
PRV Audio’s WG 14-50CR 45° x 45° exponential waveguide is designed to project a controlled dispersion pattern, such as needed with personal stage monitors, over a long distance.
Strong, lightweight aluminum construction is used to keep cabinets as light as possible for easy transport while supporting the weight of the compression driver. A standard 4-bolt flange is compatible with many 2″ compression drivers. Acoustic loading is maintained down to 600 Hz.
Specifications:
waveguide type: Exponential
Minimum frequency: 600 Hz
Nominal dispersion: 45° H x 45° V
Throat diameter: 2″
Mounting type: 4-bolt

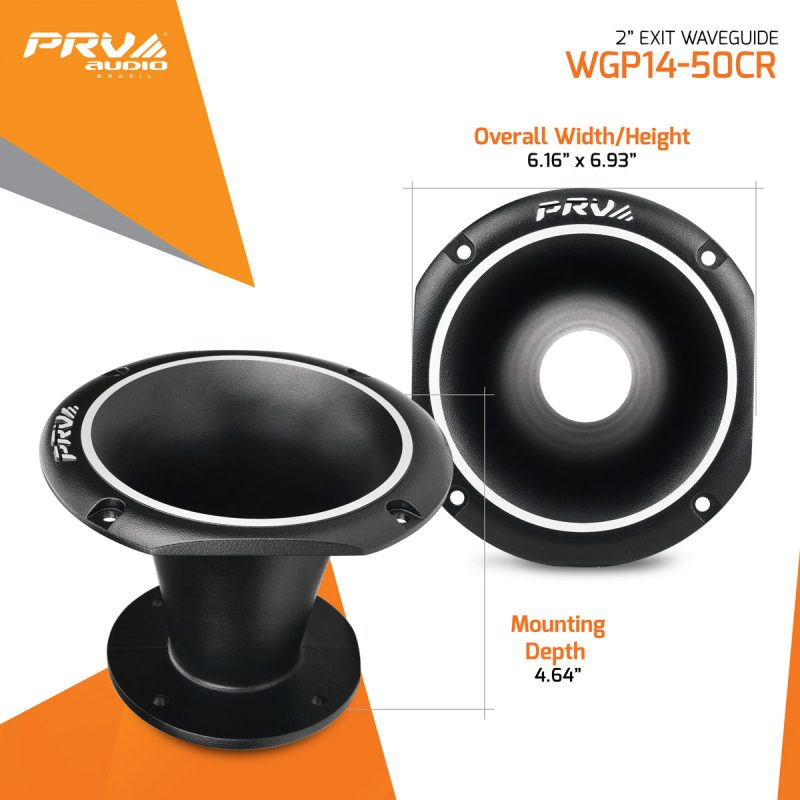

Overall front Size: 6.93″ x 6.16″
Baffle cutout: 5.39″ Diameter Circle
Mounting Depth: 4.64″
PRV Audio WG 14-50CR 45 x 45 Aluminum Waveguide 2″ Exit waveguide Bolt-on
